POGO ADAPTERS TSSOP8 / MSOP8

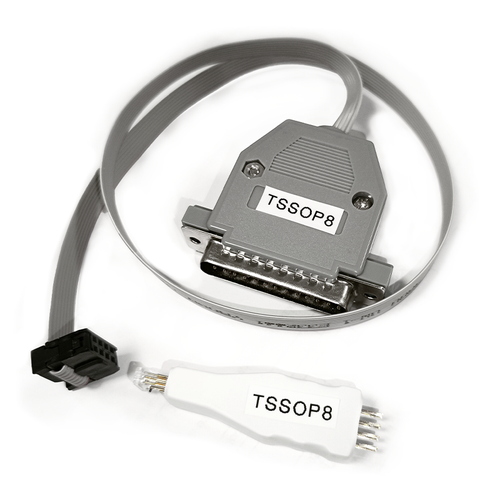

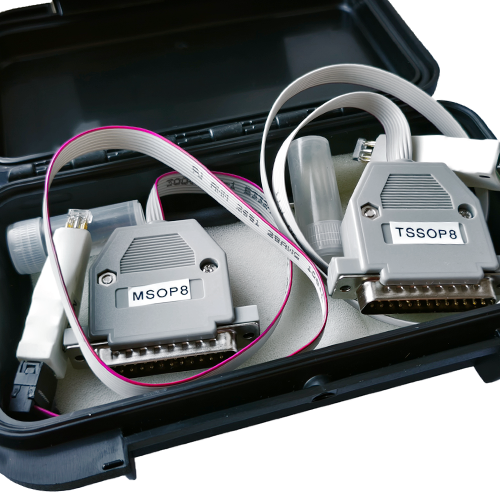

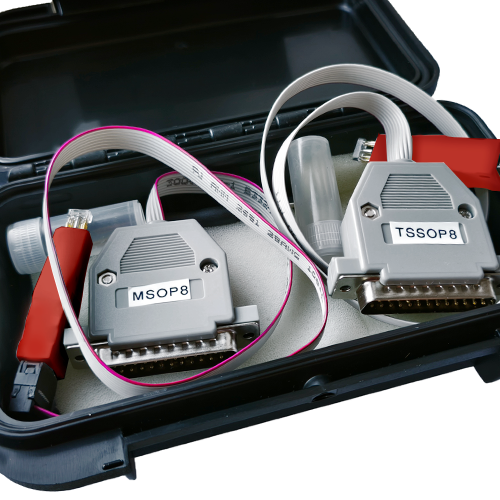

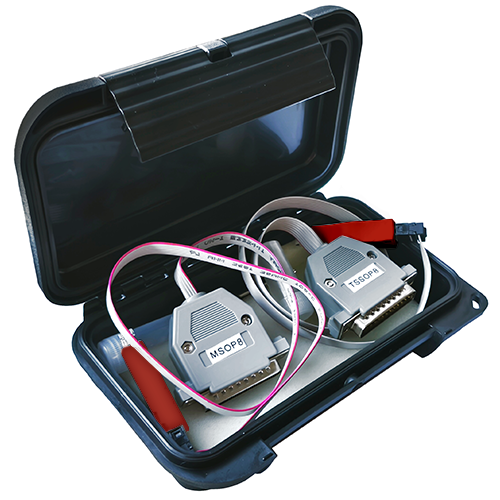

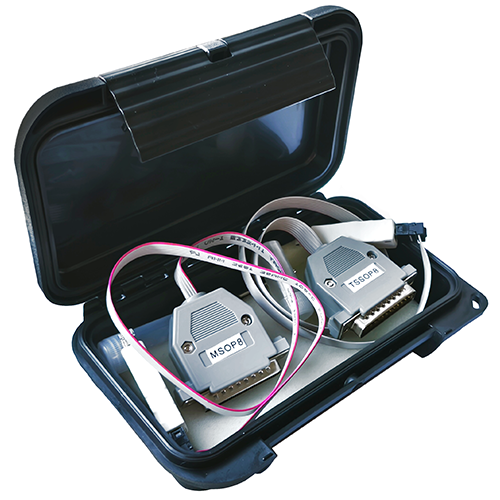

POGO ADAPTERS TSSOP8 / MSOP8  used for in-circuit EEPROM programming. POGO allows you to test or program EEPROM in TSSOP without having to desolder them from the printed circuit board. The adapter, along with a cable with DB25 connector, dedicated to work with the DiagProg4 / DiagProg5 diagnostic tester.

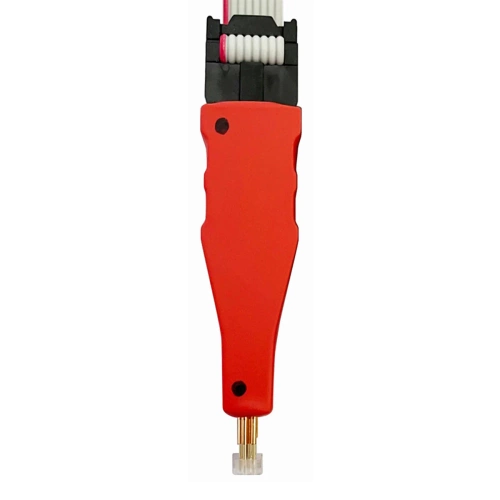

POGO ADAPTERS TSSOP8 / MSOP8 design based on 8 independent PIN-type needles. When pressed down, each PIN makes contact with the corresponding pad of the TSSOP8 or MSOP8. Due to the fine pitch [of R=0.65mm], the individual PINS are arranged in an alternating pattern. Working with the adapter allows for better and more precise access to the chip’s leads compared to traditional clip solutions.

An acrylic guide at the end of the PINS provides protection for the needles and ensures accurate alignment. The guide is secured with a miniature screw, allowing for easy replacement of the needles in case of damage.

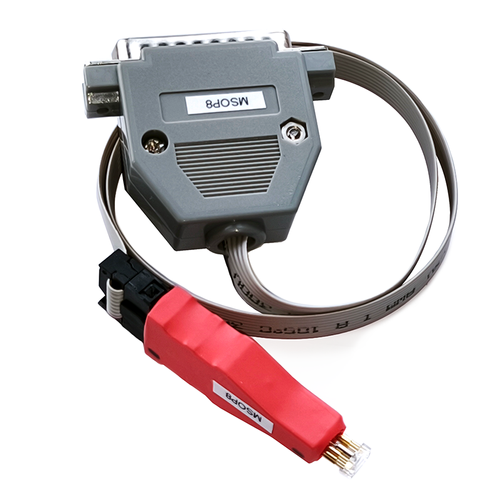

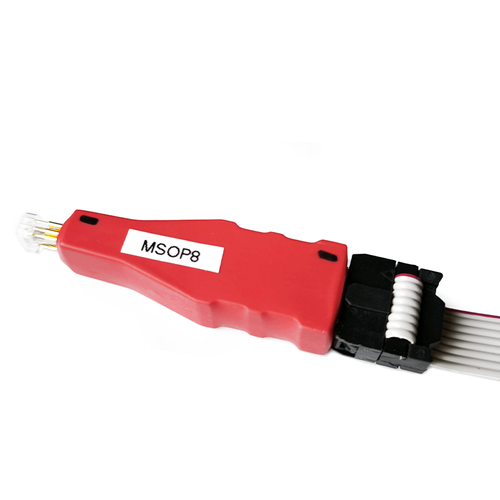

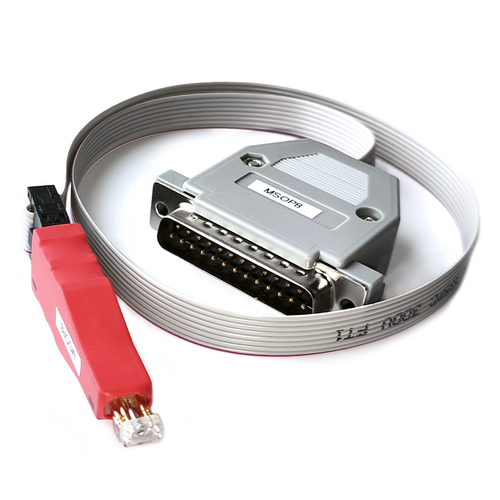

POGO ADAPTER MSOP8 adapter technical data:
- Distance between rows of PINS:  3,1 / 4,8 mm
- Number of PINS: 8

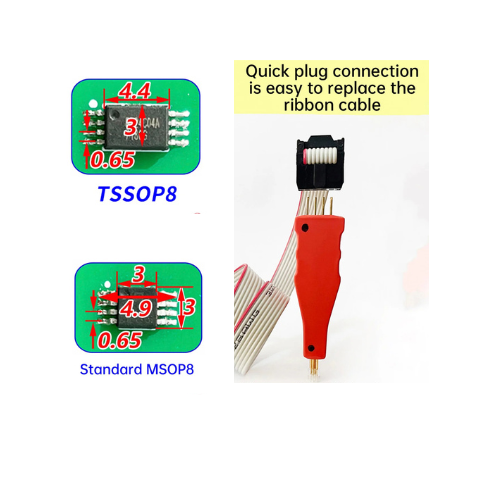

- Spacing between the PINS of the tested element: 0.65mm,
- Set includes: 2 PINS and a mini screwdriver,

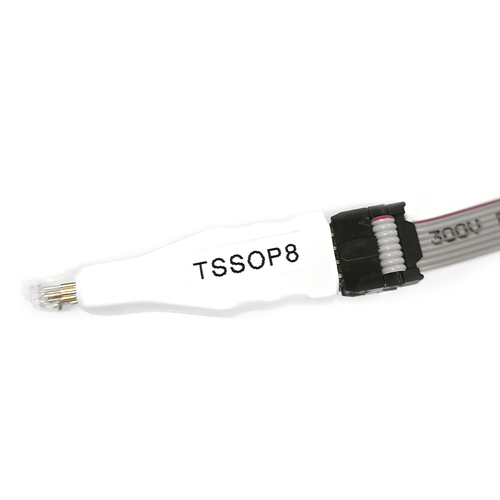

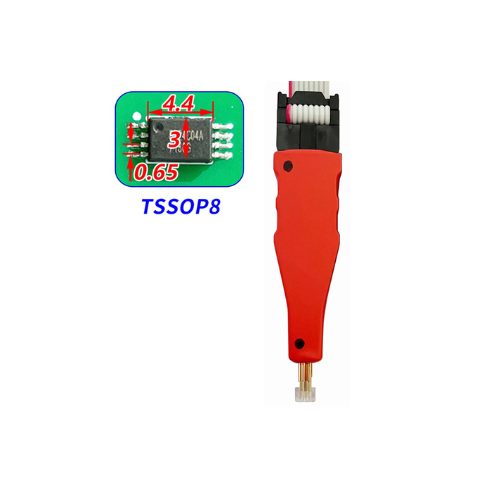

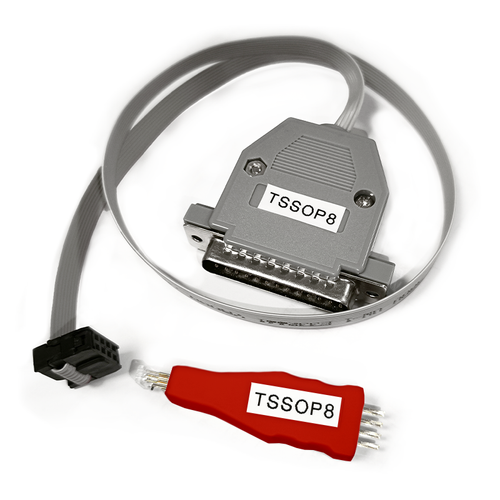

 TSSOP8 Adapter technical data:
- Distance between rows of PINS: 4,5/6,3mm
- Number of PINS: 8
- Spacing between the PINS of the tested element: 0.65mm,
- Set includes: 2 PINS and a mini screwdriver,

POGO ADAPTERS TSSOP8 / MSOP8 delivers HIGH QUALITY -

THIS IS A GUARANTEE OF PRECISION AND COMFORTABLE WORK
