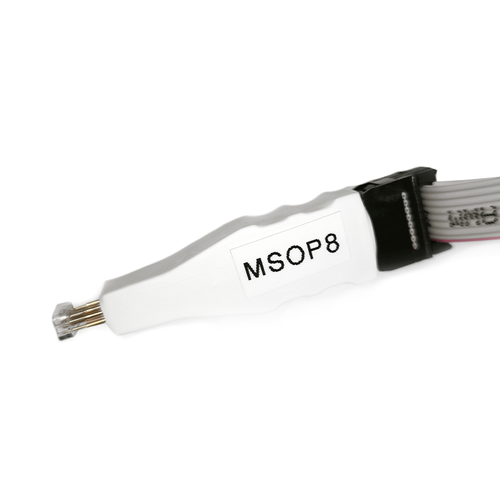

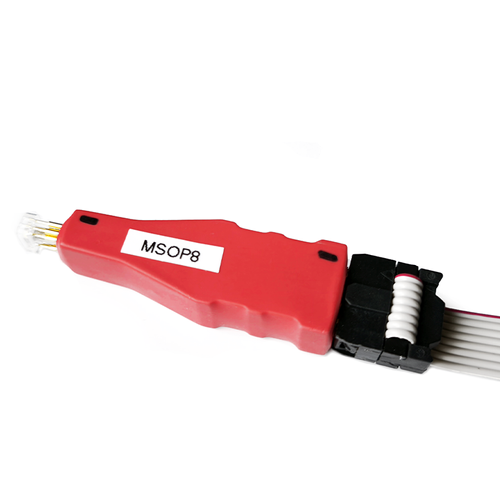

POGO ADAPTER MSOP8

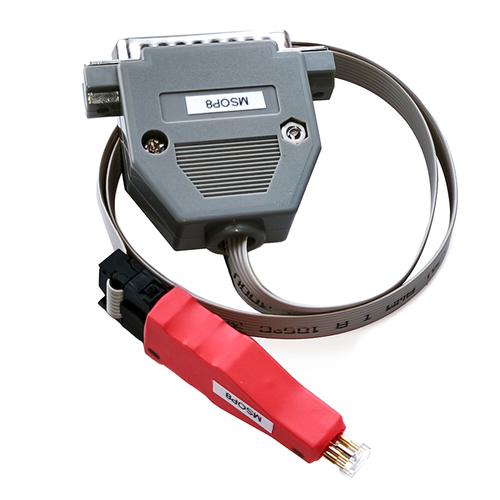

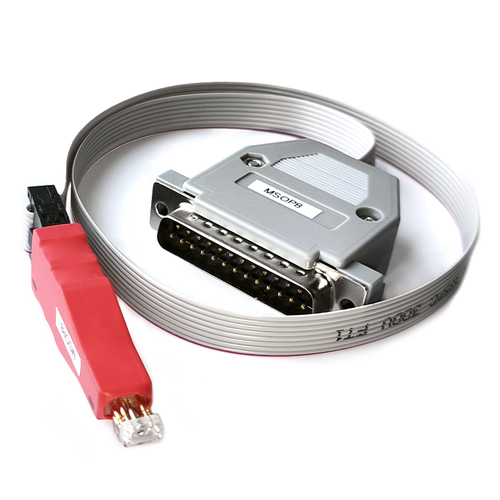

MSOP8 Adapter is used for in-circuit EEPROM programming. POGO allows you to test or program EEPROM in MSOP (R=0.65mm) without having to desolder them from the printed circuit board. The adapter, along with a cable with DB25 connector, dedicated to work with the DiagProg4 / DiagProg5 diagnostic tester.

MSOP8 Adapter design is based on 8 independent PIN-type needles. When pressed down, each PIN makes contact with the corresponding pad of the MSOP8. Due to the fine pitch of R=0.65 mm, the individual PINS are arranged in an alternating pattern. Working with the adapter allows for better and more precise access to the chip’s leads compared to traditional clip solutions.

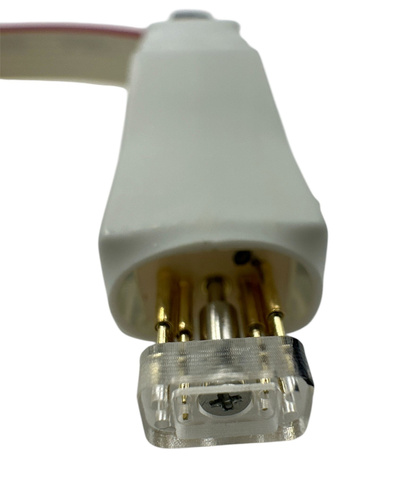

An acrylic guide at the end of the pins provides protection for the needles and ensures accurate alignment. The guide is secured with a miniature screw, allowing for easy replacement of the needles in case of damage.

MSOP Adapter technical data:
- Distance between rows of PINS: 3.1 / 4.8 mm
- Number of PINS: 8

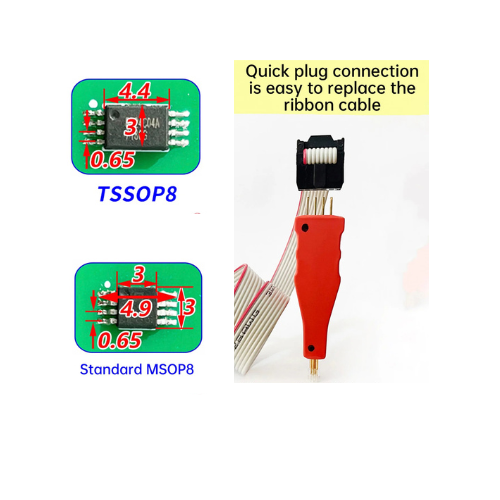

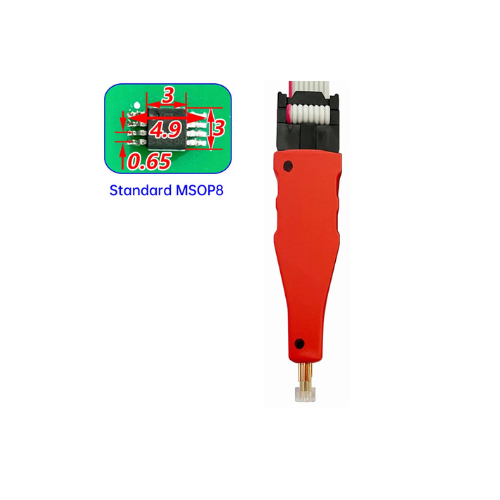

- Spacing between the PINS of the tested element: 0.65mm,

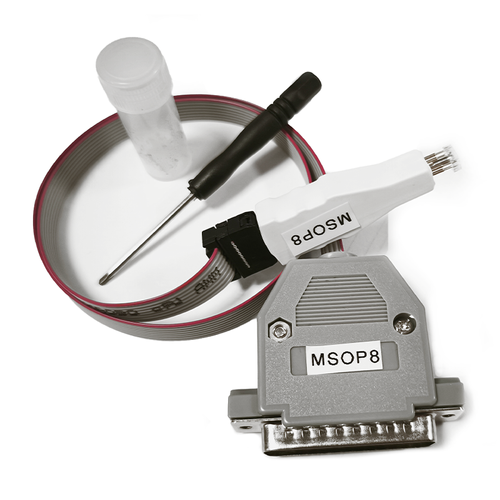

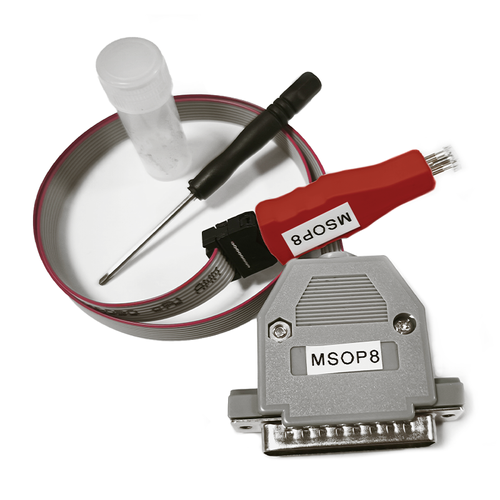

- Set includes: 2 PINS and a mini screwdriver,

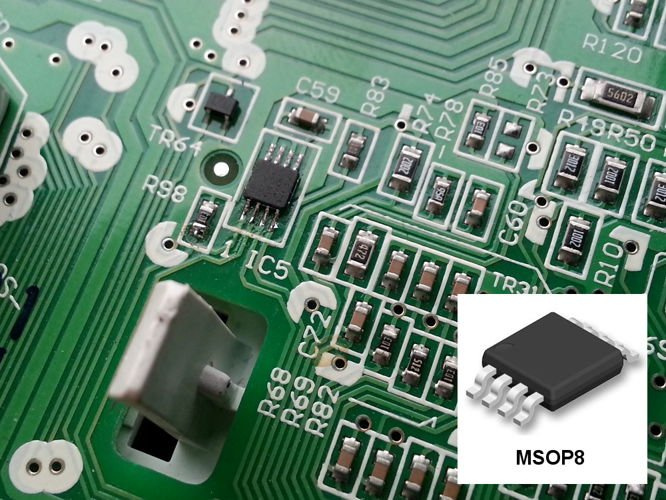

MSOP8 EEPROM memory is found in vehicles such as:
- Kia Cerato 2014
- Toyota RAV4 2014
- Hyundai I-30 new
- Hyundai Santa Fe 2013_2014
- Hyundai TUCSON 2014
- Toyota AQUA 2013 - 2014
- Hyundai AVANTE 2014
- Hyundai Grand STAREX 2014
- Hyundai MAXCRUZ 2013
- Toyota CROWN 2013 - 2014
- MMC Mirage 2013
- Toyota Camry 2015

POGO ADAPTER MSOP8 delivers HIGH QUALITY - THIS IS A GUARANTEE OF PRECISION AND COMFORTABLE WORK
