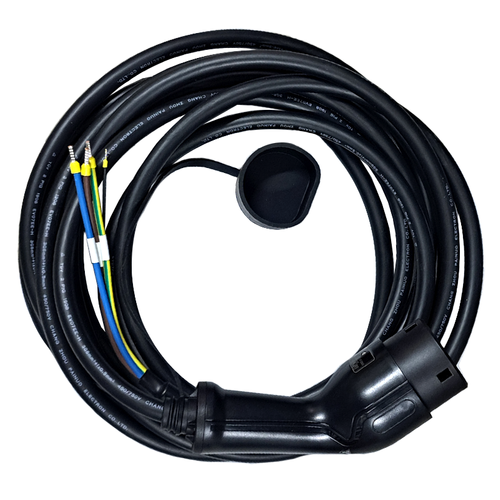

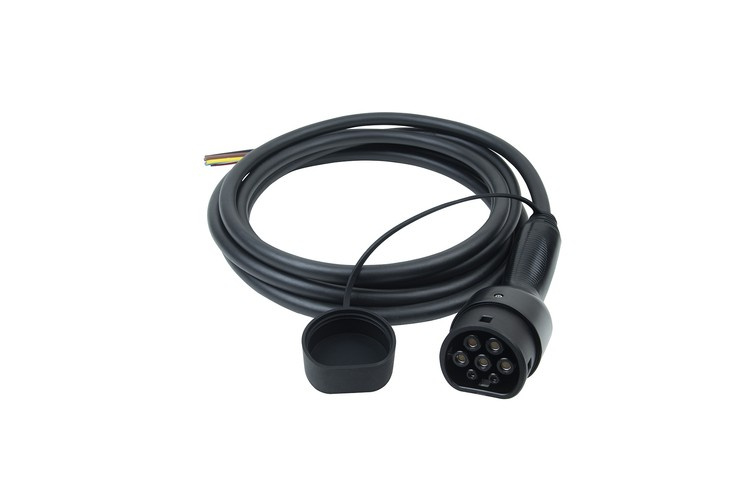

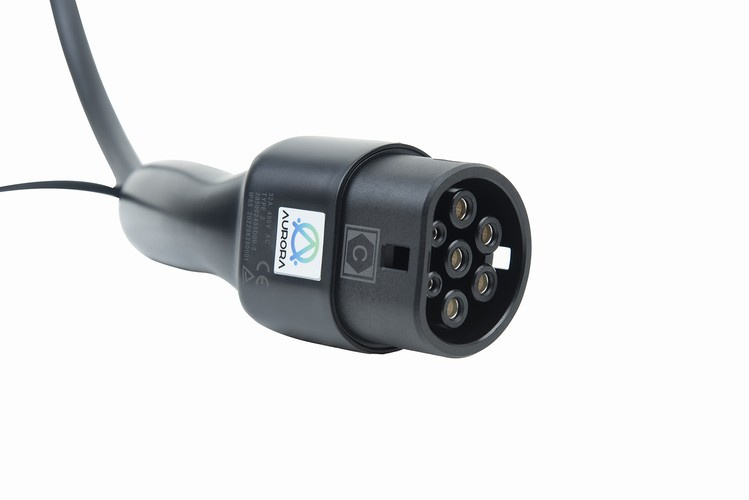

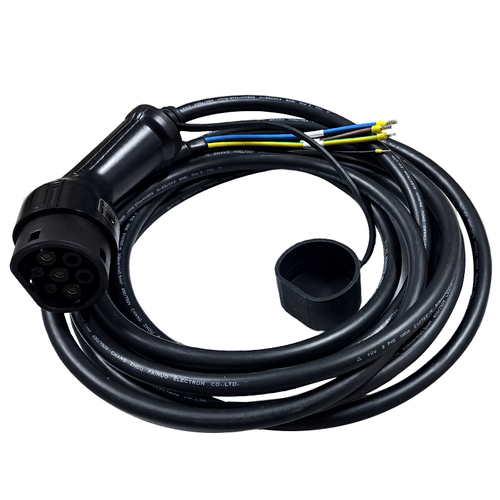

32A 1-phase plug with a 7,5m cable for EV charging
- Type-2 32A (1 phase) plug for EV charging with a 7,5m long cable is the best for eny electric car when it comes to power, charging speed and ergonomics. Charging cable is ideal for replacing the EV Charger charging cable,
➡️ Basic features of the charging cable with a Type-2 32A plug:
✔️ Model: ARR-C2B-32S,
✔️ charging cable is ideal for replacing the EV Charger charging cable,
✔️ protection degree: IP 55,
✔️ rated current: 32A,
✔️ power of 7.4kW (depends on the actual voltage in the electrical network under load 32A),
✔️ plug standard IEC 62196-2 (Type 2),
✔️ plug color: black,
✔️ cable length: 7,5m,
✔️ certifications: CE, TUV,
✔️ version with open end on the charging station side. It is intended for installation in charging stations.
Country of Origin of the Product is China. Please be aware that customs tariffs may apply and fees may be charged upon import, depending on country's regulations.
Option
32A_1phase
Product weight
3,7kg
H x W D
3×6mm²+1×0.5mm²
Operating temperature
-30℃～﹢50℃
Cable length
7,5m
Plug color
Black
Protection degree
IP55
Max output
7.4kW
Max output current
32A
