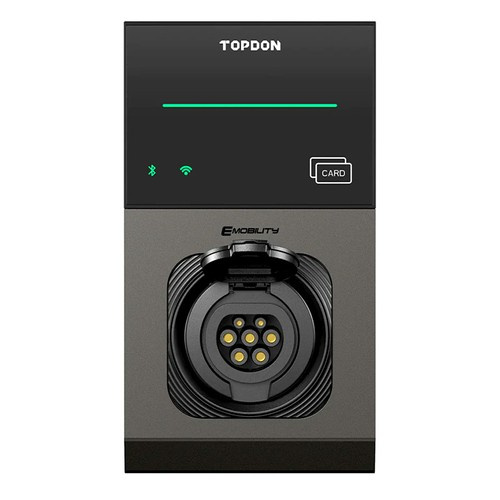

PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket
PulseQ AC Pro 22kW Smart EV Socket

PulseQ AC Pro 22kW Smart EV Socket

  • The PulseQ EV Pro EV Charger with power of 22kW is equipped with charging socket. TOPDONS electric vehicles charging station that has an RFID card reader and a mobile application.
Option
499,00 €
incl. VAT / piece
Low stock
Low stock
Safe shopping
In the store we present the gross prices (incl. VAT).

TOPDON's PulseQ AC Pro 22kW wth socket is highly compatible electric vehicles charger with a Type2 interface that is capable of three phase charging. PulseQ can deliver a maximum power of up to 22kW, making it the ultimate choice for rapid charging. The PulseQ AC Lite features 3 charging modes: Plug and Play, App Control, and RFID. Furthermore, the smart app allows for remote charging control. You can schedule charging times and monitor charging status, including estimated time, cost, and charging capacity, all from the convenience of your smartphone.


polseq

Basic features of PulseQ AC Pro EV charger:

  • Power of 22kW - fast and safe charging!

  • Safe and secure with an IP54, IK10 rate and built-in type A + DC6mA leakage protection,

  • 3 charging modes: Plug and Play, App Control, and RFID,

  • Charger can be installed both indoors and outdoors,

  • Compact design also saves valuable space,

  • Charger equipped with charging socket for charging EV's.

  • The charger even offers customization options. Upload a picture and create a personalized charging experience.

  • Smart app allows for remote charging control. Schedule charging times and monitor charging status, including estimated time, cost, and charging capacity, all from the convenience of your smartphon,

  • Safety Protection: Surge protection, over temperature, over / under voltage, over current, LN reverse polarity, leakage, ground protection,

  • Indicator Lights: Charging status indicator,

  • With the RFID card mode, you have a full control over your charging station, eliminating any concerns about unauthorized usage, Easily switch between modes to find the perfect charging solution for your electric vehicle.




  • The App-Controlled charging modes offer the advantages of convenience, real-time monitoring, customized planning, and data analysis,

  • Easily switch between modes to find the perfect charging solution for your electric vehicle,

  • TOPDON PulseQ AC Pro features voice-activated charging, seamlessly integrating the PulseQ AC Lite into your smart home via Amazon Alexa. Remotely initiate or halt charging session and effortlessly monitor charging time and capacity. Elevate your EV charging setup with the PulseQ and enjoy a new level of convenience and control,



topdon_pulseq

topdon_pulseq

TOPDON PulseQ AC Pro, the EV Charging Master for Type 2 Connector, is specifically designed to cater to European standard electric vehicles with IEC 62196-2 (Type 2) interface. With an option of single-phase (11kW) charging , this advanced AC charging solution meets a wide range of charging requirements.

The PulseQ AC Pro station has a solid housing that is resistant to dust, water and difficult weather conditions, it has a solid housing that is resistant to dust, water and difficult weather conditions, which ensures safe installation both indoors and outdoors. The station also has a number of safeguards that protect against potential threats during use. The charging station body is crafted with a robust combination of PC and aluminum alloy, ensuring long-lasting durability. The charging cable is constructed with a sturdy blend of PC and TPU materials. With an operational temperature range of –22°F to 122°F (-30°C to 50°C), our charging infrastructure is built to withstand extreme conditions while delivering consistent performance.





ORDER TODAY AND NEVER RUN OUT OF POWER!

topdon_pulseq

Adjustable charging current
32A
Cable length
5m
Option
22kW
Nominal voltage
400VAC
Frequency
50/60Hz
Number of phase
3
Charging Type
APP-controlled & Plug and Play
Network
Bluetooth, Wi-Fi, Ethernet
Operating temperature
-0℃ to 50℃
Protection
Overcurrent, overvoltage, undervoltage, ground fault including DC residual current protection, integrated surge protection
Protection degree
IP54, IK10
RFID card
2 pcs
Mounting
Wall /Floor Mounting
Socket
wyposażone w gniazdo kompatybilne z wtyczką type-2.
Dimensions - width
340×189×97mm
Built-In Leakage Protection:
RCD TypeA + DC6mA
Certification Standard
TUV, CE, CB ROHS
