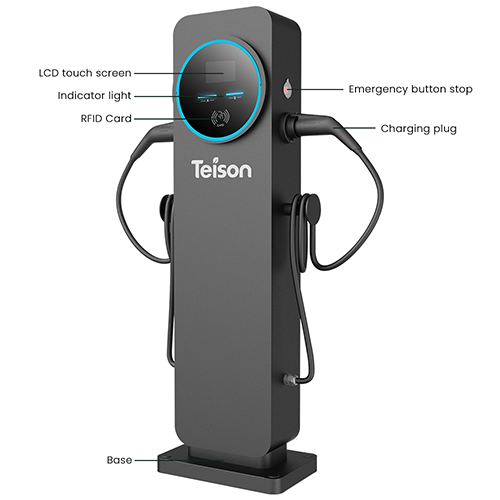

Smart OCPP Twins 22kW
- Teison Smart OCPP Twins 22kW with 2 charging cables. It is a smart EV charging station that is equipped with two EV charging cables.
Teison Smart OCPP Twins 22kW is an intelligent EV charging station that is equipped with two EV chargin cables. This smart charging station with modern design and charging power of up to 22kW, and remote management for convenience, efficiency and safety when charging EVs.
• Thanks to the two-points design, high charging power, and remote management, it ensures convenience, efficiency and safety in the process of charging electric vehicles,
• Smart OCPP Twins charging station, which allows two electric vehicles to be charged at the same time,
• Fast charging, with charging power of: 2 x 22kW,
• Supports the OCPP communications protocol: OCPP 1.6J-SON,
• *Additional option is a MID meter, which allows precise measurement of energy consumption as well as proper reporting,
• RFID authorisation means controlled charging for authorised users only with RFID cards,
• Dedicated Mobile App for even greater convenience and control of charging.
• Teison Twins OCPP station ensures that electric vehicles are charged in a safe and reliable way.
• Smart OCPP Twins charging station has been designed with the highest safety standards in mind. The station is equipped with protection against overload, short circuit and other potential hazards. Durable construction provides protection.
*Additional payment for the meter
Access control: Station has access control via RFID cards, which guarantees security and control over the use of the charging station. RFID authorisation enables safe and controlled charging, protecting access for authorised users only. Solution is particularly suitable for public spaces.
Adjustable charging current
2*32A 3-P
Option
2*22kW
Nominal voltage
380V AC
Frequency
50/60Hz
Number of phase
3
Charging Type
Typ 2
Tablet dimensions
460*1510*300mm
Charge point
type 2 4.5 m long cable
Additional options
4G, WiFi, MID meter (2pc)
Connectivity
RFID, Ethernet, OCPP 1.6 (J-SON)
Display
5-inch LCD touchscreen display with full information about the charging power, time and amount of current drawn
Ochrona różniocowo-prądowa
30mA AC + DC 6mA
Temperature
-30 ℃ ~ +50℃
Protection degree
IP55, IK10
Weight gross
60kg
Supported Protocols
OCPP 1.6J-SON.
