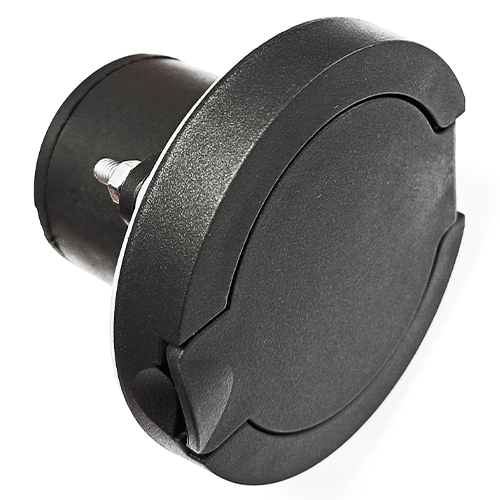

Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
+1more
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
Type 2 female EV socket 32A (3-phase)
+ Add to compareAdd to shopping list

Type 2 female EV socket 32A (3-phase)

  • Type 2 female EV socket 32A - 3-phase socket dedicated for station side
Working voltage
480V480V250V250V
Size
uniwersalny
49,00 €
incl. VAT / piece
Produkt dostępny w bardzo dużej ilości
Produkt dostępny w bardzo dużej ilości
Cheap and fast delivery
Safe shopping
In the store we present the gross prices (incl. VAT).

open_end




Type 2 female EV socket 32A dedicated for installation in charging stations. It has a nice and aesthetic appearance, a tightly closing flap protects the socket against water and dust. The product is non-flammable, resistant to pressure, abrasion and impact. The presented socket is intended for use with all European type 2 electric vehicles and charging cables.


Main features:
  • Female EV socket,
  • Socket dedicated for station side,
  • Rated current: 32Amp 3 - phase,
  • The right number of pins makes charging with three-phase current quick and effective,
  • Easy and simple installation,
  • Plug Type: Type 2
  • For indoor and outdoor use. It can be used in various weather conditions.
  • In addition, all sockets are tested to ensure their safety. Testing is done individually.



    • Technical details:
    Rated current: 32A
    Operation voltage: 480V
    Insulation resistance: >500MΩ(DC500V)
    Contact resistance: 0.5mΩ Max
    Withstand voltage: 2000V
    Mechanical life: no-load plug in/out＞10000 times
    Operating temperature: -30℃～﹢50℃
    Case material: thermoplastic, flame retardant grade UL94 V-0
    Terminal: Copper alloy, silver plating
    Working voltage
    480V
    Nominal rated voltage
    16/32A
    Isolation resistance
    >500MΩ(DC500V)
    Resistance
    0,5 mΩ Maks
    Operating temp.
    -30℃～﹢50℃
