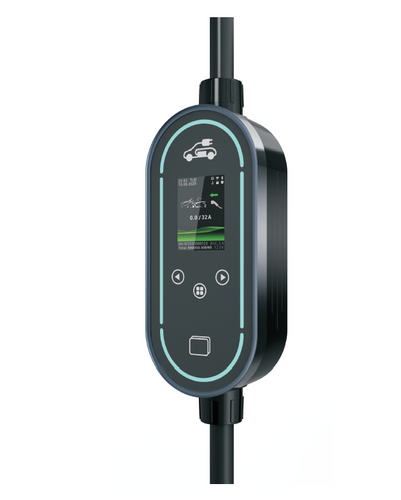

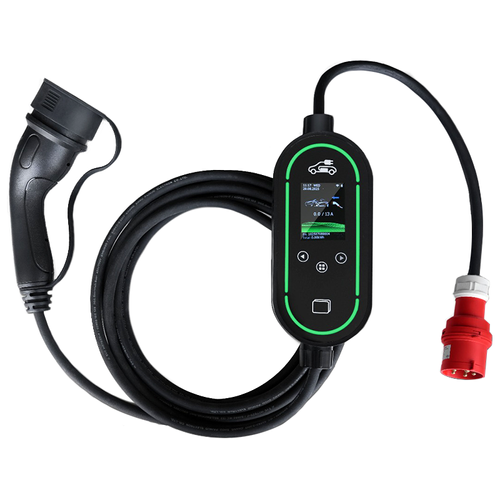

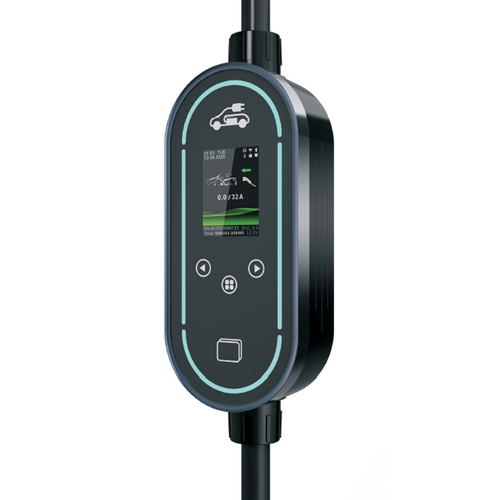

ANS Portable charger
- ANS 11kW portable charger is a compact and safe solution for charging electric cars at home and on the go. It features a mobile app and RFID authentication.

------NEW RELEASE ANS PORTABLE CHARGER -----
The portable charger features LCD display that provides real - time charging status information. Information visible on the screen indicates charging parameters, power consumption, and operating temperature. The charger has a menu in Polish.

- Full control on your smartphone thanks to the mobile app that allows you to monitor the charging process, set parameters, and check energy consumption statistics. This convenient solution enhances the comfort of everyday use.
- The charger features RFID authentication, which protects the device from unauthorized use. This ensures that the charger will only be used by you or authorized individuals.

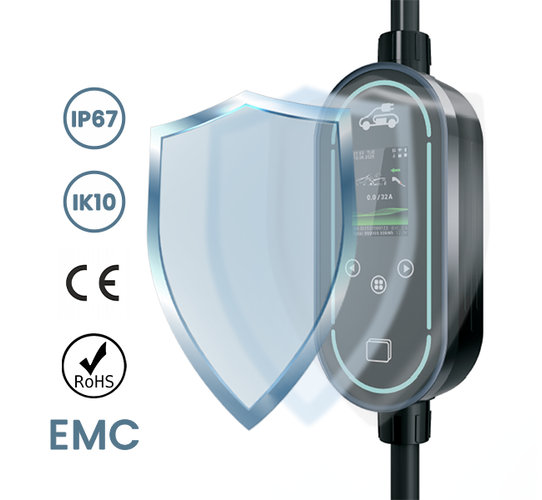

- SAFETY - The charger meets the IP67 standard and has an IK10 mechanical resistance, meaning it is completely dustproof, waterproof, and resistant to mechanical damage. It operates reliably in temperatures from -30°C to +60°C, making it suitable for both winter and summer use.
- Very light and compact charger - with weight of only 3kg so you can carry it with you on a journey in a transport bag so you will never run out of power.
- ANS charger has been quipped with Multi-Level protection systems such as overload protection, overheating protection, overvoltage protection, short circuit protection. Charger has built - in type B protection that provides maximum safety. Charger has CE RoHS and EMC certificates. It has been tested under extreme conditions.
- Display shows information about charging parameters, energy consumption and operating temperaute. Menu is available in multiple languages including Polish language.

Series
Protection
Zabezpieczenia ochrona nad/podnapięciowa, ochrona przeciwprzepięciowa, ochrona przed przegrzaniem, ochrona nadprądowa,
Safety.
IP67, IK10
Złącze ładowania
kabel 5m + złącze type-2
Komunikacja
WiFi, Bluetooth, Aplikacja mobilna, RFID, OCPP
Interfejs
Wyświetlacz 2.4″ LCD, przyciski sterowania, wskaźniki świetlne
Nastawy regulacji prądu ładowania
6/7/8/9/10/11/12/13/14/15/16A
Zabezpieczenie różnicowo-prądowe
Type B (AC 30mA+DC 6mA)
Częstotliwość
50/60 Hz
Maks. prąd wyjściowy
16A / 3-fazy
Napięcie znamionowe
400V AC ± 10%
Number of phase
3
Power
11kW
WiFi
+
