Smart Mini (S) Wallbox 11kW RFID+ONLINE
Smart Mini (S) Wallbox 11kW RFID+ONLINE
Smart Mini (S) Wallbox 11kW RFID+ONLINE
Smart Mini (S) Wallbox 11kW RFID+ONLINE
Smart Mini (S) Wallbox 11kW RFID+ONLINE
Smart Mini (S) Wallbox 11kW RFID+ONLINE
Smart Mini (S) Wallbox 11kW RFID+ONLINE
Smart Mini (S) Wallbox 11kW RFID+ONLINE

Smart Mini (S) Wallbox 11kW RFID+ONLINE

  • Smart Mini Wallbox 11kW is an inteligent compact and powerful EV Charger with RFID, WIFI and Bluetooth for better communication. Easy control via mobile APP as well as RFID feature makes Smart Mini the most reliable and safe home EV Charger.
Option
459,00 €
incl. VAT / piece
Low stock
Low stock
Safe shopping
In the store we present the gross prices (incl. VAT).

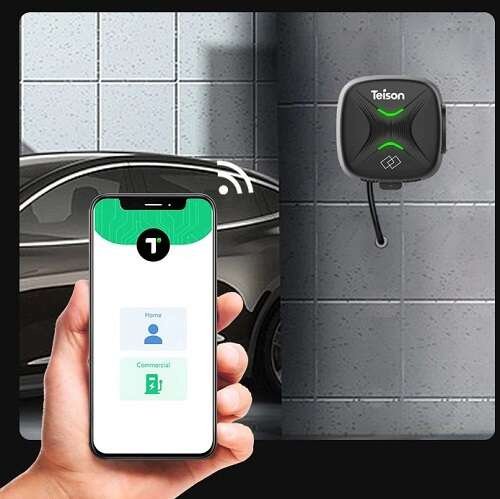

Teison Smart Mini Wallbox with power of 11kW is an inteligent, compact and powerful EV Charger with RFID, WIFI and Bluetooth for better communication. Wallbox with the built-in EV charging socket. Smart Mini Wallbox 11kW Smart EV charger from the renowned Teison company with compact size and also stylish design. Reliable design to ensure TOP Performance. The charger offers intuitive control using a Smartphone via a Mobile App, which is available on the App Store and Google Play.


apb112 emulator kluczyka

Basic features of the Wallbox Teison Smart Mini (S) 11kW:

•Wallbox is equipped with RFID, WIFI and Bluetooth for better communication,

• Charging station that has a universal charging socket compatible with a Type-2 plug,

• Protection degree is a IP65-rated enclosure charger is weatherproof and can be mounted on a wall or a dedicated pedestal

• Compatible - with any electric car and hybrid equipped with Type 2 plug,

• Wallbox has an RFID card reader and 3 RFID cards, so only authorized people who have their own card that starts the charging process can use the charger. The RFID authorization function is particularly useful in public parking lots or commercial facilities such as hotels or restaurants.

With Plug & Play mode charging process starts automatically as soon as the charger is plugged into the car, with no additional setup required,

Charging power of 11kW, - Up to 10x faster charging - compared to standard chargers!

LED light indicators indicate the Mode in which the charger is operating, for simple and clear communication with the device.

• Dedicated module AC / DC (Type FI A + 6mA RCD).

Delay the Charging Start feature available in the mobile app.

smart_mini

• Charging modes: by APP / Plug & Play / RFID.

• Standards: IEC / EN61851-2011.



The Smart Mini Wallbox EV charger (11kW) can be controlled via a mobile app that allows user to:

• Remote Start / Stop of vehicle charging process,
• deleting of charging parameters,
• monitoring of the charging status,
• scheduling / pre - setting the charging time,
• collection of the operations data,


Be independent- Your own Wallbox will give you a break from the charging on the public charging stations. Power your car when you want and enjoy your freedom. Electric car charging is an everyday occurrence, so it needs to be as simple as charging your phone - that's what Wallbox is. What's more, it also keeps you safe with advanced electronics that constantly watch over the charging so you can sleep soundly.








Possible locations:
PRIVATE PROPERTIES / GARAGES / SERVICE GARAGES / SERVICE WORKSHOPS / GAS STATIONS / CAR DEALERSHIPS / SHOPPING CENTERS / BUSINESSES / HOTELS / RESTAURANTS / CAR PARKS


apb112 emulator kluczyka

Charging outlet
Socket
Option
11kW RFID ONLINE
Nominal voltage
380V AC
Input power
16A
Frequency
50/60Hz
Number of phase
3
Charging Type
Typ 2
Operating temperature
-30 to 60°C
Protection degree
IP65
Weight gross
5,2kg
Material
PCV0
Supported protocols
OCPP 1.6 J-SON
RFID cards
3szt
modes of communication
Bluetooth, Ethernet
Dimensions of wallbox
234.5*234.5*148mm
RFID
+
Residual current protection
TYPE A(30mA AC)
