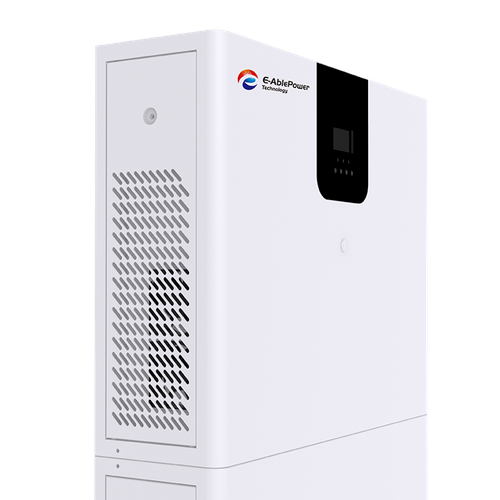

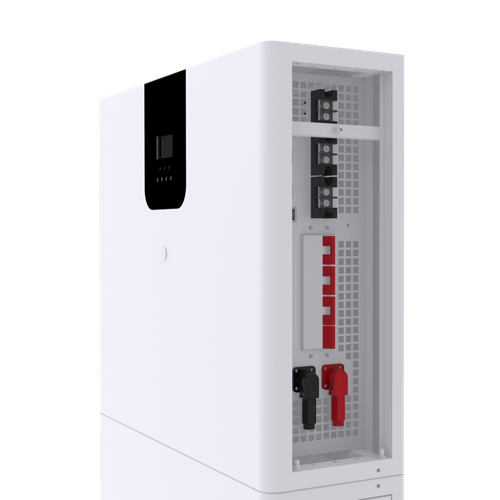

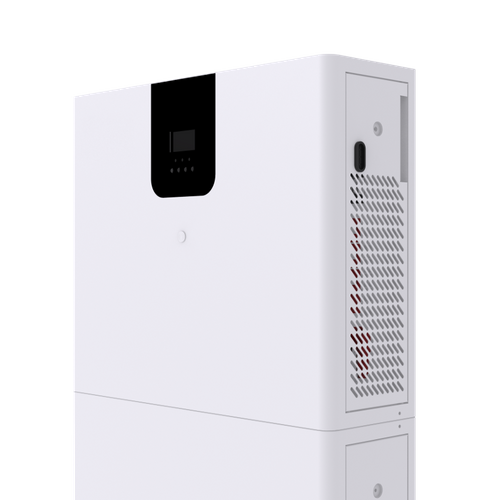

INVERTER EOV48-5.0S-C high-performance Inverter from the reputable E-Able Power Technology Co, Ltd. Inverter designed to build independent power systems based on energy obtained from PV panels.
INVERTER EOV 48V SERIES (INVERTER EOV48-5.0S-C) Modular Inverter in a vertically mounted version. INVERTER EOV48-5.0S-C is a high-performance Inverter from the reputable company E-Able Power Technology Co, Ltd.
INVERTER INVERTER EOV48-5.0S-C
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave,
Two output modes: mains bypass and inverter output; uninterrupted power supply,
Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging,
Advanced MPPT technology with an efficiency of 99.9%, tracking technology, which can quickly track the maximum power point of the photovoltaic array in any environment to obtain the maximum energy of the solar panel in real time with wide voltage range of MPPT
Intelligent variable speed fan to efficiently dissipate heat and extend system life,
Supply of a variety of user-friendly communication modules such as RS485 (GPRS, WiFi ) or USB etc,
Suitable for computer, mobile phones, Internet monitoring as well as remote operations,
The product adopts the segment LCD display design to display the operation data and state of the system in real time. The comprehensive electronic protection function ensures that safety and stability of the whole system,
Small size, minimizing installation time and cost. Compact and stylish design suitable for your sweet home environment,
The inverter has a variety of working modes. Whether it is used for main power supply in the area without electricity or backup power supply , the system can respond flexibly.
Nominal power
5000 W
Output Voltage
230V
Frequency
50Hz
AC Charging Current Range
0～60A
Solar Charge Type
MPPT
Connectivity
RS485
Installation
Vertical
Recommended Operation Environment
Montaż wewnątrz budynku
Operating temp.
0-45℃
Working humidity:
5% - 85%
Noise
60dB
Safety standards
IP20
DOD
80%
Dimensions
600×184×610mm
Option
EOV48_Inverter_Module_C_5kW
Weight od the Inwerter
60kg
