Set includes Hybrid Solar Charger Inverter (HF4850S80-H) and 10kWh Energy Storage Battery 48V.

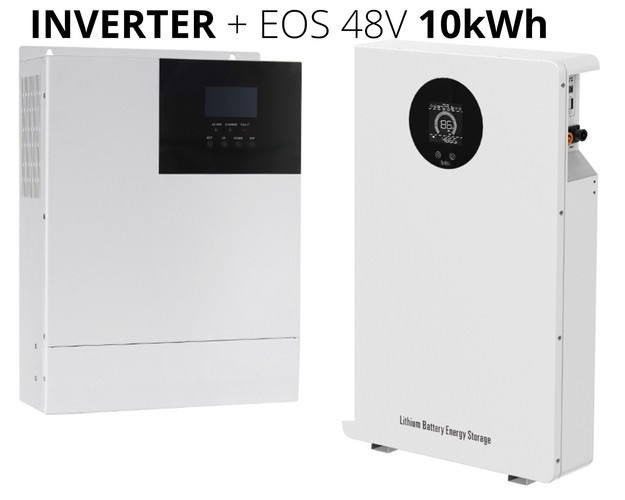

Set of Solar Inverter HF4850S80-H+ 10kWh Energy Storage Battery 48V
Set includes:

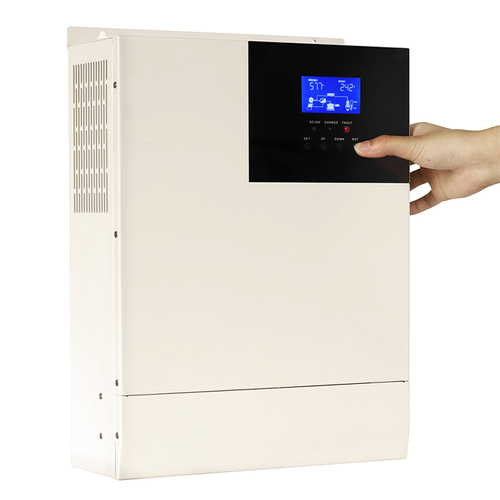

1. Hybrid Solar Charger Inverter 48V 5kW (HF4850S80-H) is a new All-in-one inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, reliability and meets industrial standard.
Basic features of the Solar charger Inverter:
Allows the collection and return of energy obtained from the electricity supplier's grid or from photovoltaics,
Advanced SPWM technology, output of pure sine wave,
Two output modes: mains bypass and inverter output; uninterrupted power supply,
Multiple charging modes, you can charge with photovoltaic power, commercial power or both at the same time,
Advanced MPPT technology with an efficiency of 99.9%, tracking technology,
which can quickly track the maximum power point of the photovoltaic array in any
environment to obtain the maximum energy of the solar panel in real time with wide voltage range of MPPT
ON/OFF rocker switch for AC output control,
Power saving mode available to reduce no-load loss,
Intelligent variable speed fan to efficiently dissipate heat and extend system life,
Lithium battery activation design, allowing access of lead-acid battery and lithium battery,
360 ° all-round protection with a number of protection functions. Such as overload, short circuit and over current.
Supply of a variety of user-friendly communication modules such as RS485 (GPRS, WiFi ) or USB etc,
Lithium battey can be activated by both mains and PV.
The product adopts the segment LCD display design to display the operation data and state of the system in real time.
2. Energy Storage Battery 48V 10kWh is a new generation of household energy storage system with LFP batteries which can meet the diversified needs of global users. The Energy storage system adopts a modular design, including power modules and ensures more than 6000 cycles with 80% DOD, so it can be easily combined into a system of any capacity required by the user.
Basic features of the Energy Storage:
Vertical industry integration ensures more than 6000 cycles with 80% DoD,
Long battery lifespan - design life of this product is 20 years,
LCD screen with real-time data,
Small size, minimizing installation time and cost.
LCD screen for better communication.
Energy storage compatible with the Smart Life - Smart Living mobile application designed to control and manage smart devices.
You can use multiple batteries in parallel at the same time.
Compatible with most of the available Hybrid inverters.
Inwerter parameters
Model
HF4850S80-H
IP protection
IP20
Cell Type
Lead acid or lithium battery
Humidity range
5% to 95%
Communication interface
USB/RS485 (WiFi/GPRS)
Input Voltage
220/230Vac
Rated battery input voltage
48V
Wymiary (L-W-D)
378mm*280mm*103mm
Max Power Output
5kW
Frequency
50Hz/ 60Hz
Solar charge (PV)
MPPT voltage range
120-450Vdc
PV napięcie robocze
120-500Vdc
Maximum output power
5000W
Battery voltage range
40-60Vdc
Maximum intput powe
4000W
Connectivity
RS485/CAN/WIFI
Energy Storage parameters
Operation Environment
wewnatrz, montaż naścienny
Protection degree
IP30
Tablet dimensions
620*450*140mm
Max charging current
150A (0.75C)
Max discharging current
200A (1C)
Operating temperature
0～45℃
Cycle times 80%DOD
6000
Batery capacity
200Ah
Option
EOS48_Inverter_2Battery_Module_E_5.12kWh
Max Output Power
10.24 kWh
Rated battery voltage
51.2V
