Teison DC 40kW

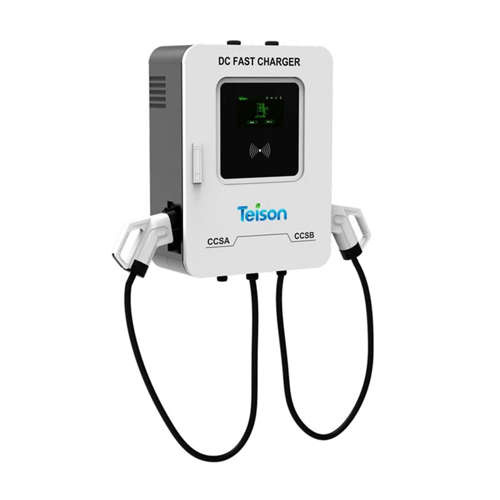

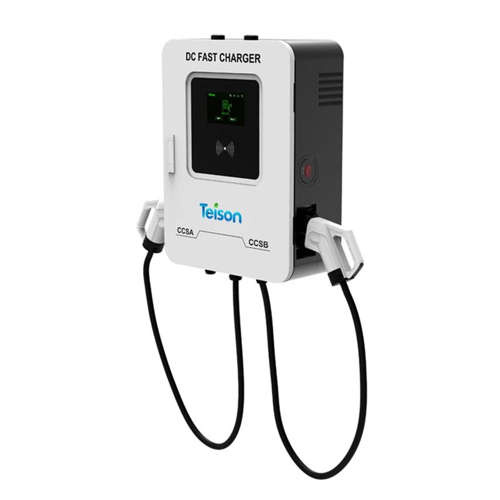

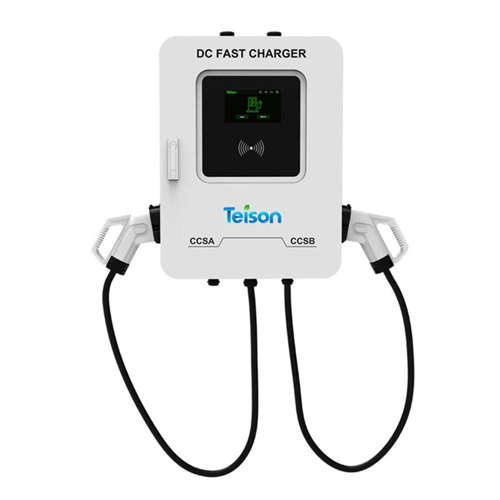

- Teison DC Fast Charger 40kW is a wall-mounted DC fast charging station equipped with two independent CCS connectors. Industrial LCD display screen reduces energy consumption. Charger is compatible with OCPP1.6 J-son Protocol.
Teison DC Fast Charger 40kW is a wall-mounted DC fast charging station equipped with two independent CCS connectors. Integrated DC Charging Station adopts a modern design with simple and elegant apperance, stable frame and full protection functions. This wall-mounted DC fast charger provides high-efficiency, safety and stable DC power to all electric vehicles. The station is equipped with LCD screen and many advanced features. Teison DC Fast Charger 30kW is compatible with OCPP1.6 J-son Protocol.
• Two CCS2 Type 2 plugs with a 5-meter cable will ensure fast charging of vehicles.
• User friendly interface with a touchscreen LCD provides detailed information about the operating status of the charging station.
• Teison 40kW station has a WiFi module, an Ethernet network module and supports the OCPP1.6 J communication protocol. What's more, the station can be started using RFID authorization cards and by scanning the QR code with a phone (dedicated mobile application).< br>
• Powered by direct current, which guarantees fast vehicle charging time - the charging power is 40kW.
• Thanks to the high charging power (40kW), charging most electric vehicles to 80 percent should take no more than 60 minutes.

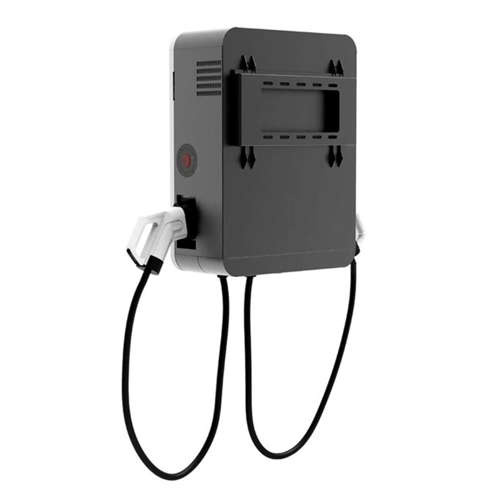

• The charging station can be wall-mounted, which allows for reasonable use of space in various installation scenarios, and also provides easy access for maintenance.
• Modular design means that each functional component of the product adopts modular design to bring convenience for maintenance and overhaul.
• The charging station adopts a low power consumption design,and some modules have the sleep functions which can reduce power consumption in standby state.
• Teison 40kW station has a WiFi module, an Ethernet network module and supports the OCPP1.6 J protocol. The station can be managed using an RFID card and by scanning the QR code with a phone (dedicated mobile application).
• Easy to Install: The instalation process is simple and efficient, and the estimated time is very short. The product can be wall - mounted so it saves space.
PRIVATE ESTATES I GARAGES I SERVICE WORKSHOPS I PETROL STATIONS I CAR SHOWROOMS I SHOPPING CENTRES I COMPANIES I HOTELS I RESTAURANTS I CAR PARKS!
Option
40kW
Frequency
45-65Hz
Charging Type
CCS Type 2
Input current
66A
Output current
100A
MS908SP Weight
85kg
Number of connectors
2
Communication of the charger
Ethernet, WIFI, 3G/4G, mobile app, RFID reader
Operating temperature
-30 to 50°C
Protection
Overvoltage/undervoltage protection, lightning protection,phase loss detection
Input Voltage
Trójfazowa AC380V+10% (L1+L2+L3+N+PE)
Protection degree
IP65
Mounting
Easy wall-mounting
Size of product
770x580x270mm
Certification Standard
CE
Output Voltage
DC 150V~1000V
Emergency button
yes
