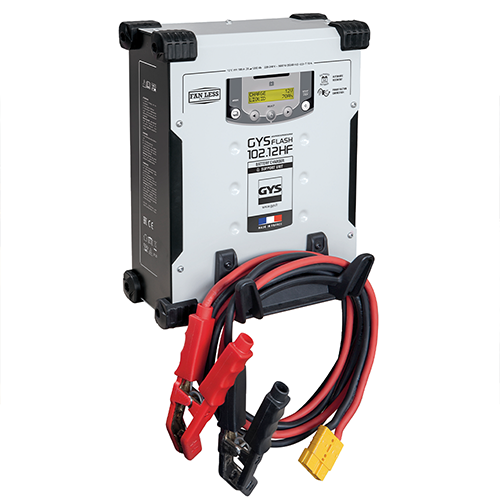

SET OF GYSFLASH 102-12 HF CHARGER + MOUNTING BRACKET MAGNETFIX
- Set of GYSFLASH 102-12 HF CHARGER + MOUNTING BRACKET MAGNETFIX which is special fixing kit that can be used to mount GYSFLASH 102.12 CHARGER on a wall.
5 DIFFERENT MODES TO USE:
• Charge : for 12V batteries (lead-acid/AGM/gel) from 20 to 1200 Ah.
• Diag + : support up to 100 A the 12V batteries for vehicles in diagnostic phase.
• Battery change : ensures a stabilised power supply to the vehicle during battery replacement to preserve memory settings.
• Power Supply : adapt the charger in stabilised power supply with voltage and adjustable maximum current.
• Showroom: the charger will compensate the current used by the consumers in use on the vehicle.
ADVANCED FUNCTIONS:
• The «Auto Restart» function means that the charger will memorise the settings in case of a power cut and restart automatically.
• Control and calibration of cables, the charger can be fitted with cables up to 2x8m long and 16mm² thick.
• Locked in Showroom mode, avoid the risks of misuse, perfect for garages and exhibition spaces.
• 4 charging curves available, whose the Easy mode for a simplified charge adapted to all lead acid batteries.
• Activation and set-up of an «Expert» charging curve
100% AUTOMATIC CHARGE:
• The 9 step charging curve ensures maximum battery performance and longevity.
• It can recover deeply discharged batteries below >2 V (SOS automatic Recovery.
ULTRA SAFE:
• Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Anti-spark technology.
• Interchangeable fusible which protect against misuse.
• Temperature sensor to prevent internal electronics overheating.
• Automatic stand-by mode if the battery is disconnected.
ERGONOMIC:
• Compact and robust box with front cable reel (2 x 5 m).
• Pads for shock and vibration absorption.
• Optional wall mount with sliding system or magnetic (Magnetfix).
Cable length
5 m
Charging capacity
20-1200 Ah
Maximum charging current
100 A
Dimensions
12 x 34,5 x 29,5 cm
IP protection
IP 21
Weight
9,1kg
