MaxiIM IM508 Kit + XP400 Pro MaxiIM IM508 Kit + XP400 Pro - is a fast, easy-to-use, and ultraportable immobilizer and key programming device. It is equipped with XP400 Pro key and chip programmer, to provide complete coverage of IMMO and programming functions Product description Technical data Opinions (0) Ask a question

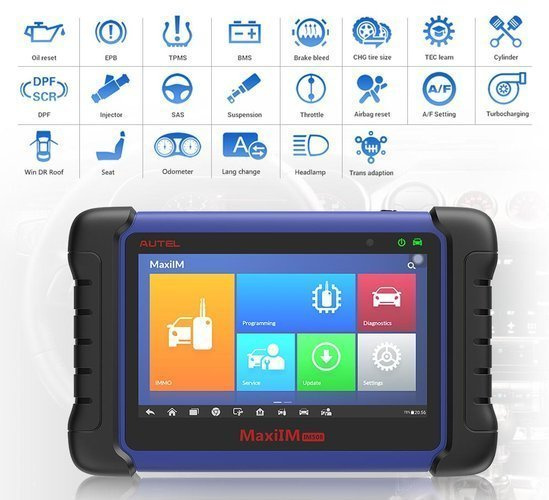

MaxiIM IM508 Kit + XP400 Pro is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Equipped with the XP400 Pro key and chip programmer, IM508 Kit + XP400 Pro is capable of providing extraordinary service functions for the immobilizer system.
AUTEL MaxiIM IM508 Kit + XP400 Pro is equipped with XP400 Pro key and chip programmer!
VIDEO
Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions.
Visit www.auteltools.com website for more information about IM508 Kit + XP400 Pro!
MaxiIM IM508 Kit + XP400 Pro - ULTRA ADVANCED - ULTRA STRONG - ULTRA FAST - ULTRA MOBILE!
MaxiIM IM508 Kit + XP400 Pro is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services!
Autel MaxiIM IM508 Kit + XP400 Pro basic features:
XP400 Pro key and chip programmer
Powerful Cortex-A9 processor
7” 1024×600 LCD capacitive touchscreen
Internal reliable 32GB Memory
Android Operating System for fast boot-up and multitasking
Powerful combination of key programming/all system diagnostics/advanced maintenance services
Smart Mode for guided and automated key learning
Expert Mode for advanced key learning
Read PIN/CS (all key lost) , key generation, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Transpronder read/write, EEPROM/MCU read/write
Powerful OE level diagnostics for more than 80 worldwide makes and models
Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
With the XP400 PRO programmer Autel IM508 has even more functions, so you can do advanced IMMO programming same as Autel IM608.
MaxiIM IM508 Pro is offered with Autel programmer XP400 PRO that contains:
XP400 Pro programator
APB129 - EEPROM Adapter
APA002 - EEPROM socket
APB125 - Mercedes Infrared collector
APB103 - MCU PLCC52 ADAPTER
APB104 - MCU FQFP64 ADAPTER
APB105 - MCU FQFP80 ADAPTER
APB106 - MCU FQFP112 ADAPTER
APB107 - MCU FQFP114 ADAPTER
APB108 - MCU FQFP176 ADAPTER
APB109 - MCU FQFP32 ADAPTER
APB110 - MCU_FQFP48 ADAPTER
APB111 - MCU_SO28 ADAPTER
APB113 - PCF79XX ADAPTER
APB114 - EWS3 ADAPTER
APB115 - NEC ADAPTER PLATE
APB118 - NEC STEERING LOCK ADAPTER
APB119 - TB28FXXX ADAPTER
APB120 - TMS370 ADAPTER
APB121 - AM29FXXX ADAPTER PLATE
APB122 - AM29FXXX ADAPTER 1
APB123 - AM29FXXX ADAPTER 2
APB126 - M35080 & D80 ADAPTER
APB127 - MC68HC(7)05BXX ADAPTER
APB128 - MC68HC05X32 ADAPTER
APA101 - SPARE SIGNAL CABLE
APC101 - USB CABLE
APA103 - EEPROM CLAMP
DUPONT LINE
APA107 - ECU CABLE
APA108 - MCU CABLE
APA109 - MC9 S12 CABLE
MaxiIM IM508 Kit + XP400 Pro set includes:
XP400 Pro key and chip programmer
AAC001 – MED17 Cable
KIA-20 Adaptor
Mazda-17 Adaptor
MaxiIM IM508 Tablet
Carrying Case
Quick guide
Honda-3 Adaptor
KIA-10 Adaptor
XP200 Key Programmer
USB External Power Adapter
Main cable
Mini USB Cable
TECHNICAL SPECIFICATION
Processor
Cortex-A9 processor (1.6 GHz)
Display
7'' LCD screen (1024x600 )
Connectivity
Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card ( up to 32GB)
Battery
3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Sensors
Ambient light sensor for brightness auto changing
Camera
8.0 Mexgapixel, AF with Flashlight
Storage temp.
-20 to 60°C (-4 do 140°F)
Updates
standard: 1 year, optional: 2 years
Zużycie prądu
500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Audio
Input: N/A Output: buzzer
Supported protocols
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
