MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII
MaxiIM IM608 PROII

MaxiIM IM608 PROII

  • MaxiIM IM608 PROII - is the most advanced and smart key programming tool that combines the most powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet.
4 399,00 €
incl. VAT / piece
Low stock
Low stock
Safe shopping
In the store we present the gross prices (incl. VAT).
MaxiIM IM608 PROII is the most advanced and smart key programming tool that combines the most powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet.
With the included key programmer XP400 Pro and MaxiFlash JVCI+, IM608 Pro II is destined to be the unprecedented key programming tool that you ever wanted.



Autel MaxiIM IM608 basic features

  • Expert Mode for advanced key learning,
  • Powerful proccessor Qualcomm SDM660 4 x 4,4GHz + 4 x 1,8GHz,
  • Read PIN/CS (all keys lost) , key generation, key learning, remote learning,
  • IMMO ECU reset/adaptation, refresh/coding,
  • Transpronder read/write, EEPROM/MCU read/write,
  • Advanced, OE-Level Diagnostics for more than 80 U.S., Asian, and European vehicles,
  • Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions,
  • Equipped with Autel Remote Expert capbility,
  • All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere,
  • Qualcomm Octa-core Processor (2.2GHz) and 128GB Storage Memory,
  • 10.1-inch LCD touchscreen with 1920 x 1200 resolution,
  • Android 10 Operating System for fast boot-up and multitasking,
  • Tester suppoprts protocols such as : ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6,

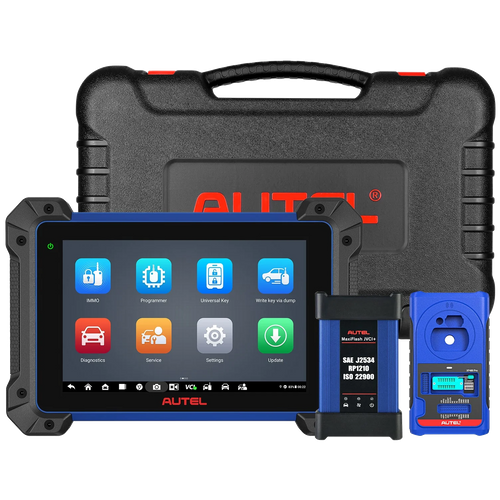

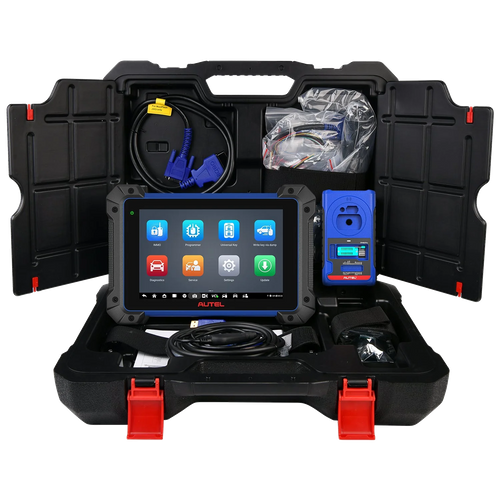

  • Set includes MaxiIM IM608 PROII:

  • IM608Pro II Tablet,
  • XP400 Pro Key Programmer,
  • MaxiFlash JVCI,
  • Connection Cables,
  • USB Adapter,
  • Carrying Case.




TECHNICAL SPECIFICATION
Processor
Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Operation System
Android™ 10.0
Display
10.1" LED (920x1200)
Supported languages
Polish, English
Connectivity
Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 (2 USB TYPE-A, Mini USB), BT V5.0, SD Card (max 64GB), HDMI
Input Voltage
12 V (9-24 V)
Battery
15000 mAh 3.8 V lithium-polymer
Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)
Camera
8.0 Mexgapixel , AF with Flashlight
Memory
4GB RAM & 128GB On-board Memory
Storage temp.
-20 to 60°C (-4 to 140°F)
Operating temp.
0 to 50°C (32 to 122°F)
Dimensions - width
300 mm x 220 mm x 50 mm
Weight
11 kg
Zużycie prądu
6.5 W
Audio
Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jac
Supported protocols
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE
